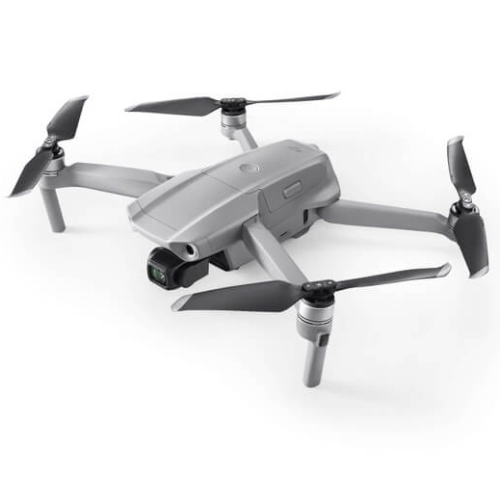

DJI Mavic Air 2 FMC

SKU: 100118

Price:
$1,899

Description

Description

Mavic Air 2 takes power and portability to the next level, offering advanced features in a compact form factor. Intelligent shooting functions and excellent image quality put aerial masterpieces within reach. Safer, smarter flight enables you to up your game while fully enjoying the creative process.

Key Features
  • Effortlessly smooth 4K/60fps video.
  • 48MP photos.
  • HDR Video
  • SmartPhoto
  • HDR Panorama
  • Focus Track
  • 8K Hyperlapse



Specs

Aircraft

 Weight

570g

Size

Folded: 180x97x84mm (LxWxH)

Unfolded: 183x253x77mm (LxWxH)

Diagonal Distance

302mm

Max Ascent Speed

4 m/s (S Mode)
4 m/s (N Mode)

Max Descent Speed

3 m/s (S Mode)
3 m/s (N Mode)
5 m/s (S Mode during a sharp descent)
3 m/s (all modes at elevations over 4500m)

Max Service Ceiling Above Sea Level

5000 m

Max Flight Time (without wind)

34 minutes

Max Hover Time (without wind)

33 minutes

Max Flight Distance

18.5km

Max Horizontal Flight Speed 19 m/s (S Mode)
12 m/s (N Mode)
5 m/s (T Mode)
Max Wind Resistance

8.5-10.5 m/s (Level 5)

Max Tilt Angle

35° (S Mode)
20° (N Mode)
35° (N Mode under strong wind)

Max Angular Velocity

250°/s (S Mode)
250°/s (N Mode)

Operating Temperature Range

-10° to 40°C (14° to 104°F)

Operating Frequency

2.400-2.4835 GHz
5.725-5.850 GHz

Transmitter Power (EIRP)

2.400-2.4835 GHz:
FCC: ≤26 dBm
CE: ≤20 dBm
SRRC: ≤20 dBm
MIC: ≤20 dBm

5.725-5.850 GHz:
FCC: ≤26 dBm
CE: ≤14 dBm
SRRC: ≤26 dBm

Hovering Accuracy Range

Vertical:
±0.1 m (with vision positioning)
±0.5 m (with GPS positioning)

Horizontal:
±0.1 m (with vision positioning)
±1.5 m (with GPS positioning)

Propellers

Quick release, low noise, folding

Satellite Systems

GPS+GLONASS

Compass

Single Compass

IMU

Single IMU

Internal Storage

8 GB




Battery

 Capacity 3500 mAh
Voltage 11.55 V
Charging Voltage Limit 13.2 V
Battery Type LiPo 3S
Energy 40.42 Wh
Weight 198 g
Charging Temperature 5° to 40°C (41° to 104°F)
Max Charging Power 38 W




Camera

 Sensor

1/2" CMOS
Effective Pixels: 12 MP and 48 MP

Lens

FOV: 84°
Equivalent Focal Length: 24 mm
Aperture: f/2.8
Focus Range: 1 m to ∞

ISO

Video:
100-6400

Photo (12 MP):
100-3200 (Auto)
100-6400 (Manual)
Photo (48 MP):
100-1600 (Auto)
100-3200 (Manual)

Max Photo Resolution

48 MP 8000×6000 pixel

Photo Modes

Single: 12 MP and 48 MP
Burst: 12 MP, 3/5/7 frames
Automatic Exposure Bracketing (AEB): 12MP, 3/5 Frames at 0.7EV Bias
Timed: 12 MP 2/3/5/7/10/15/20/30/60 seconds
SmartPhoto: Scene Recognition, HyperLight, and HDR
HDR Panorama:
Vertical (3×1): 3328×8000 pixels (Width×Height)
Wide (3×3): 8000×6144 pixels (Width×Height)
180° Panorama (3×7): 8192×3500 pixels (Width×Height)
Sphere (3×8+1): 8192×4096 pixels (Width×Height)

Photo Formats

JPEG/DNG (RAW)

Video Resolution and Frame Rates

4K Ultra HD: 3840×2160 24/25/30/48/50/60 fps
2.7K: 2688×1512 24/25/30/48/50/60 fps
FHD: 1920×1080 24/25/30/48/50/60/120/240 fps
4K Ultra HD HDR: 3840×2160 24/25/30 fps
2.7K HDR: 2688×1512 24/25/30 fps
FHD HDR: 1920×1080 24/25/30 fps

Color Profiles

D-Cinelike, Normal

Video Formats

MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC)

Max Birate

120 Mbps

Supported SD Cards

Supports a microSD with capacity of up to 256GB

Supported File Systems

FAT32 and exFAT

Zoom

Not Available



Gimbal

 Stabilization 3-axis (tilt, roll, pan)
Mechanical Range Tilt: -135° to 45°
Roll: -45° to 45°
Pan: -100° to 100°
Controllable Range Tilt: -90° to 0° (Default)
-90° to 24° (Extended)
Max Controllable Speed (tilt) 100°/s
Angular Vibration Range ±0.01°



Vision Transmission

 Transmission System OcuSync 2.0
2.4 GHz/5.8 GHz Auto-Switching
Max Transmission Distance 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)
Live View Quality 720p@30fps/1080@p30fps

Latency (depending on environmental conditions and mobile device)

120-130 ms

Video Transmission Encoding format

H.265

Max Live View Bitrate

40 Mbps

Operating Frequency

2.400-2.4835 GHz
5.725-5.850 GHz



Remote Controller

 Remote Controller Transmission System OcuSync 2.0

Supported Mobile Device Connectors

Lightning, Micro USB, USB Type-C

Max. Supported Mobile Device Size

180x86x10 mm (Height x Weight x Thickness)

Operating Temperature

-10° to 40°C (14° to 104°F)

Transmitter Power (EIRP)

2.400-2.4835 GHz:
FCC: ≤26 dBm
CE: ≤20 dBm
SRRC: ≤20 dBm
MIC: ≤20 dBm

5.725-5.850 GHz:
FCC: ≤26 dBm
CE: ≤14 dBm
SRRC: ≤26 dBm

Operating Current/Voltage

1200 mA@3.7V (Android)
700 mA@ 3.7 V (iOS)
